ASUS

PN:90SF02J1-M000R0

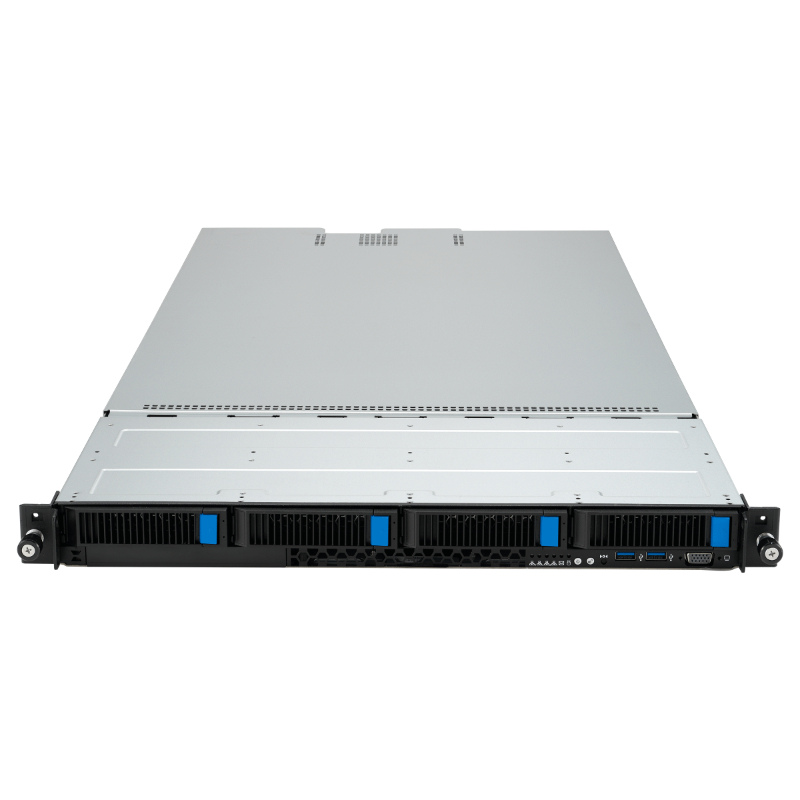

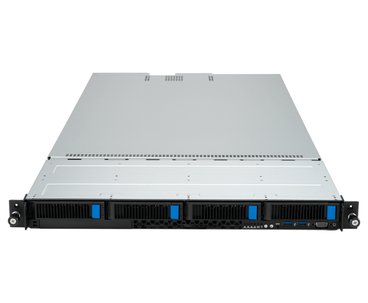

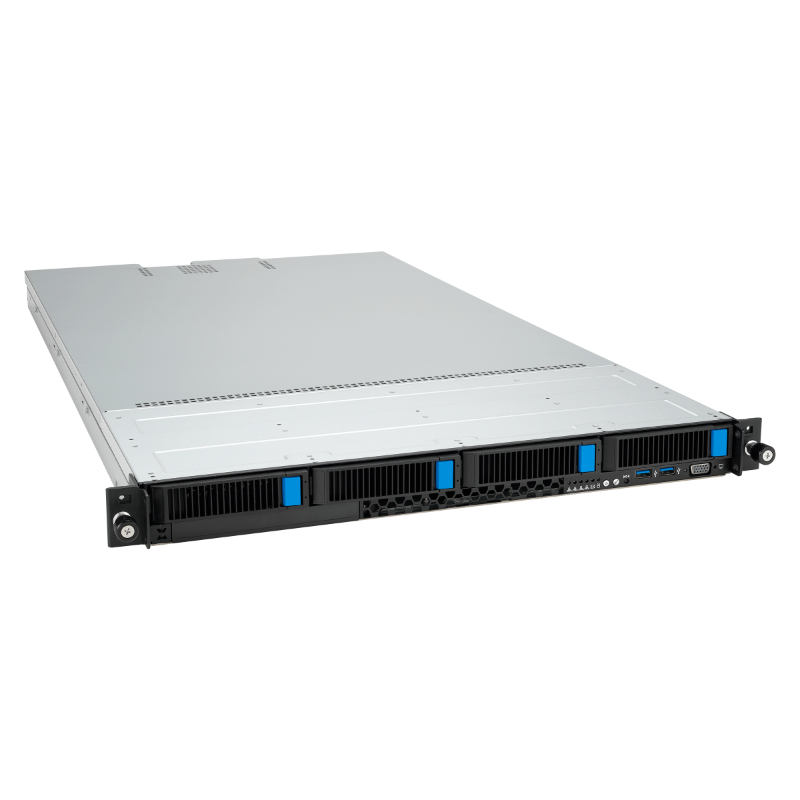

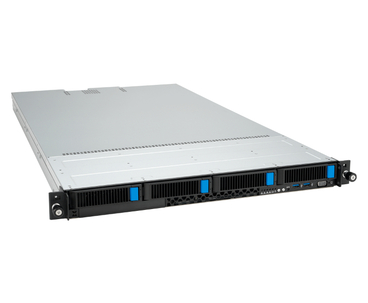

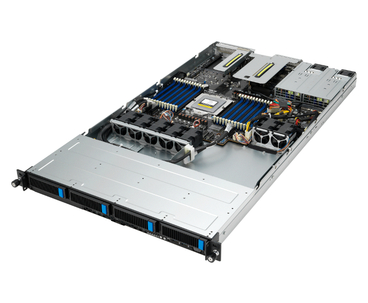

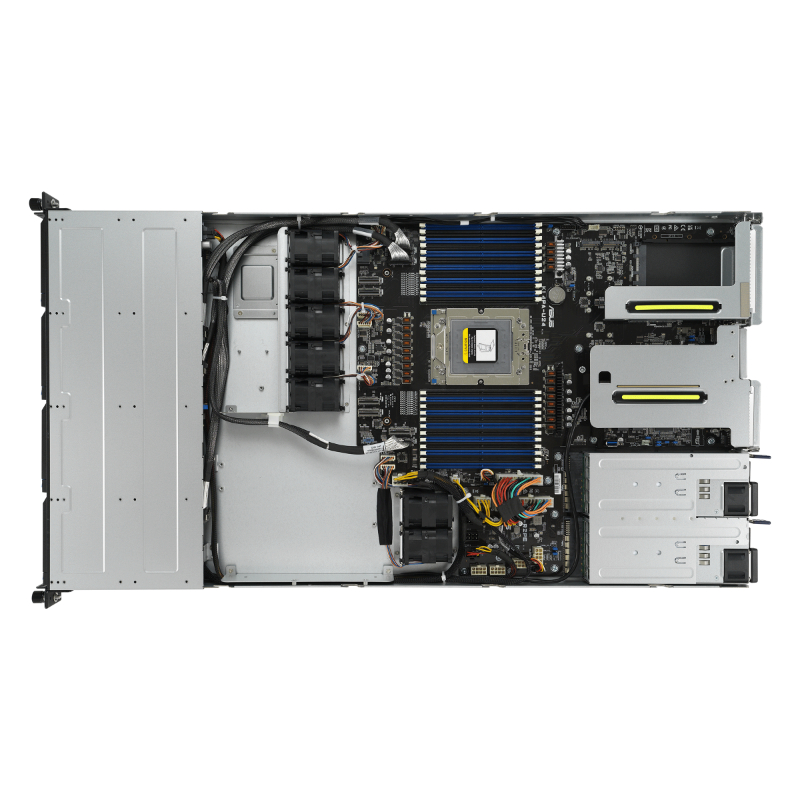

SERVIDOR ASUS RS500A-E12-RS4U

LGA 6096/ AMD Epyc/ 2xVGA/ 1U

2.858,63€ PVP

Comprar

Consultar

● Con Ventilador: Si ● Imagen Salida: Si ● Microprocesador: AMD ● Microprocesador Integrado: No ● Multi-Grafica: No ● Nº Bancos De Memoria: 24 ● Nº Conexiones SATA: 4 ● Nº USB 3.2 Gen1: 2 Frontales 2 Traseros ● Tecnologia De Memoria: DDR5 RDIMM

ASUS

PN:90SF02J1-M000R0

SERVIDOR ASUS RS500A-E12-RS4U

LGA 6096/ AMD Epyc/ 2xVGA/ 1U

2.858,63€ PVP

Comprar

Consultar

●Con Ventilador: Si
●Imagen Salida: Si
●Microprocesador: AMD
●Microprocesador Integrado: No
●Multi-Grafica: No
●Nº Bancos De Memoria: 24
●Nº Conexiones SATA: 4
●Nº USB 3.2 Gen1: 2 Frontales 2 Traseros
●Tecnologia De Memoria: DDR5 RDIMM

Front I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA portnes:

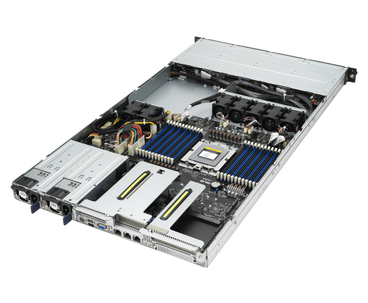

Processor / System Bus

1 x Socket SP5 (LGA 6096)
4th Generation AMD EPYC Processors with AMD 3D V-Cache technology
AMD EPYC™ 9004 Series Processors (Air cool with EVAC up to 400W)

Memory

24 x DIMM slots
DDR5 4800/4400/4000/3600 RDIMM/ 3DS RDIMM
1DPC up to 4800
2DPC up to 4000(1R+1R)
2DPC up to 3600(1R+2R)/ (2R+2R)
Maximum 6144GB

* Refer to support page for more information

Expansion Slots

Up to 3 PCIe Gen5 slots + 1 OCP3.0
1 x PCIe x16 slot (Gen5 x16 link, FH, HL)
1 x PCIe x16 slot (Gen5 x16 link, LP, HL)
1 x PCIe x16 slot (Gen5 x8 link, LP, HL)
1 x OCP3.0 socket (Gen5 x16 link)

Storage

Storage Controller :
CPU Integrated
Optional kits Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G HBA card

Drive Bays

Front bays:
4 x 2.5” Hot-swap Storage Bays
4 x SATA/SAS/NVME

*SAS support only from optional SAS
HBA/RAID card

2 x M.2 connectors

Networking

1 x Dual Port Intel I350-AM2 GbE LAN Controller
1 x Management Port

Graphic

Up to 2 single-slot GPU cards

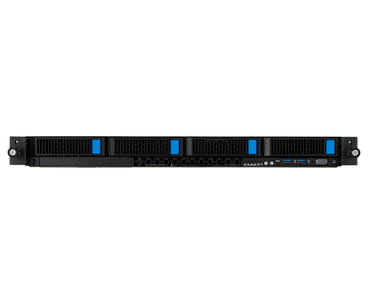

Front I/O Ports

2 x USB 3.2 Gen1 ports
1 x VGA port

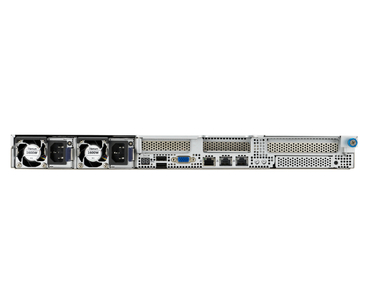

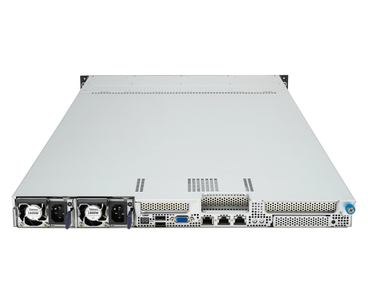

Rear I/O Ports

2 x USB 3.2 Gen1 ports
1 x VGA port
1 x Management port
2 x 1GbE LAN ports

Switch/LED

Front:
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED
1 x HDD LED
4 x LAN LED (1-2 for on-board LAN, 3-4 for OCP LAN)
Rear:
1 x Port80 LED (Q-Code)
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED

Dimensions

842.5mm x 439.5mm x 43.85mm

Form Factor

1U

Weight

22.56kg

Power Supply

1+1 Redundant 1600W/800W* 80 PLUS Titanium
Power Supply
1+1 Redundant 1200W/800W* 80 PLUS Platinum
Power Supply

*800W PSU for non GPU SKU+ CPU up to 240W+12 x DIMM.

PN:90SF02J1-M000R0

SERVIDOR ASUS RS500A-E12-RS4U

LGA 6096/ AMD Epyc/ 2xVGA/ 1U

2.858,63€ PVP

Consultar

Las especificaciones e imágenes están sujetas a cambios sin previo aviso. Todas las marcas y logotipos son propiedad de sus respectivos fabricantes. La foto puede mostrar otros productos que se venden por separado.
