ASUS

PN:90SF02G1-M002Y0

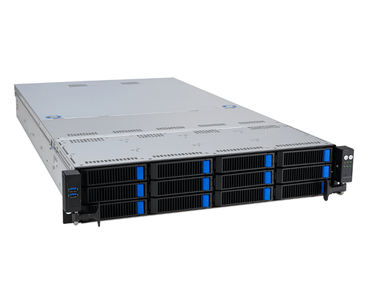

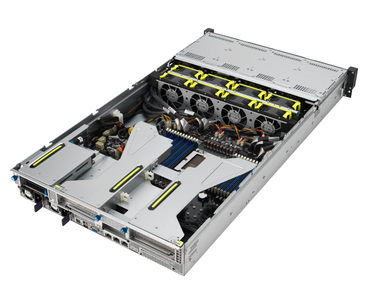

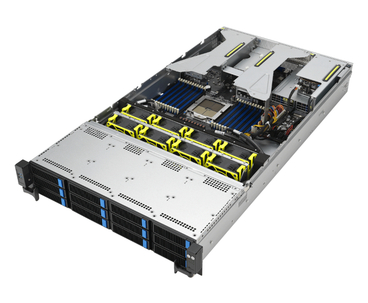

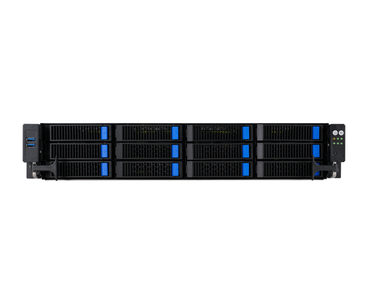

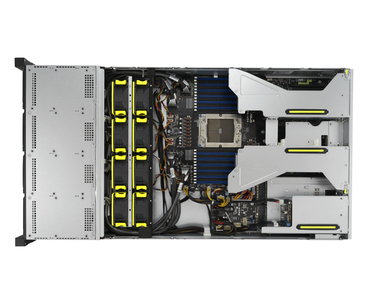

SERVIDOR ASUS RS520A-E12-RS12U

2U/ AMD SP5/ Sin gráficos

3.802,43€ PVP

Comprar

Consultar

● Gráfica Dedicada: No ● Microprocesador: AMD ● Microprocesador Integrado: No ● Nº Bancos De Memoria: 24 ● Nº Conexiones SATA: 12 ● Nº USB 3.2 Gen1: 2 Frontales 2 Traseros ● Tecnologia De Memoria: DDR5 RDIMM

ASUS

PN:90SF02G1-M002Y0

SERVIDOR ASUS RS520A-E12-RS12U

2U/ AMD SP5/ Sin gráficos

3.802,43€ PVP

Comprar

Consultar

●Gráfica Dedicada: No
●Microprocesador: AMD
●Microprocesador Integrado: No
●Nº Bancos De Memoria: 24
●Nº Conexiones SATA: 12
●Nº USB 3.2 Gen1: 2 Frontales 2 Traseros
●Tecnologia De Memoria: DDR5 RDIMM

Especificaciones:

Processor / System Bus

1 x Socket SP5 (LGA 6096)
4th Generation AMD EPYC Processors with AMD 3D V-Cache technology
AMD EPYC™ 9004 Series Processors (Air cool with STD HSK up to 400W)

Memory

24 x DIMM slots
DDR5 4800/4400/4000/3600 RDIMM/ 3DS RDIMM
1DPC up to 4800
2DPC up to 4000(1R+1R)
2DPC up to 3600(1R+2R)/ (2R+2R)
Maximum 6144GB

* Refer to support page for more information

Expansion Slots

Up to 5 PCIe Gen5 slots + 1 OCP3.0
2 x PCIe Gen5 x16, FHFL or 4 x PCIe Gen5 x8, FHFL
1 x PCIe Gen5 x8, LP
1 x OCP 3.0 Slot ( (PCIe Gen5 x16)

Storage

Storage Controller : CPU Integrated
Optional kits Controller :
Broadcom Mega RAID 9560-16i
ASUS PIKE II 3008-8i 8-port SAS 12G HBA card

Drive Bays

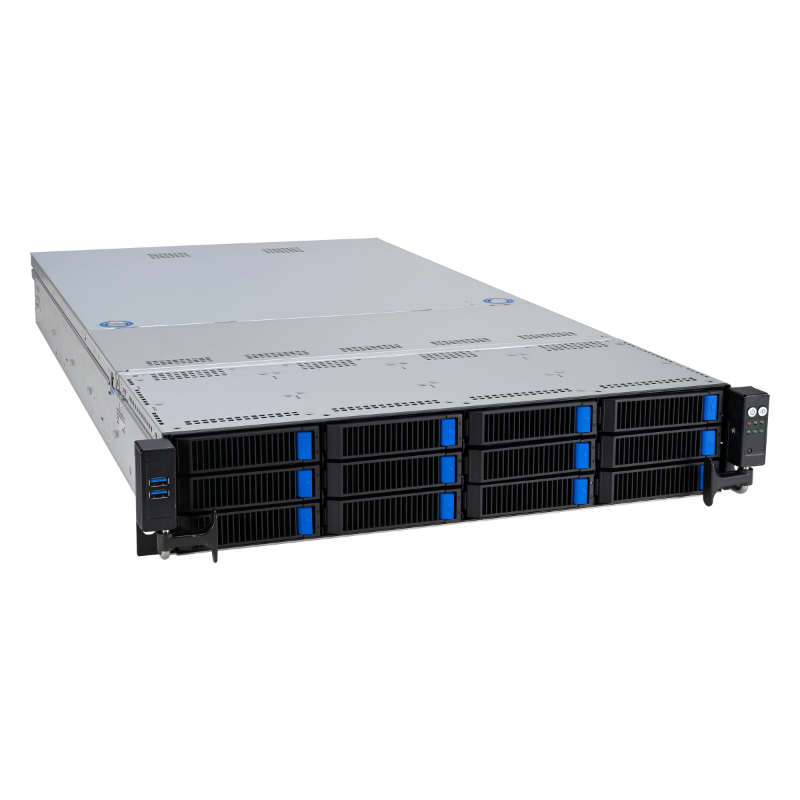

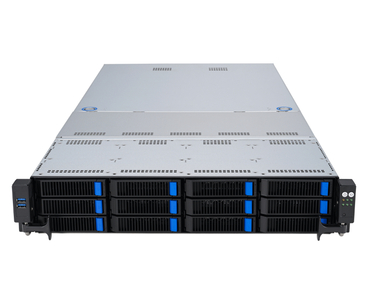

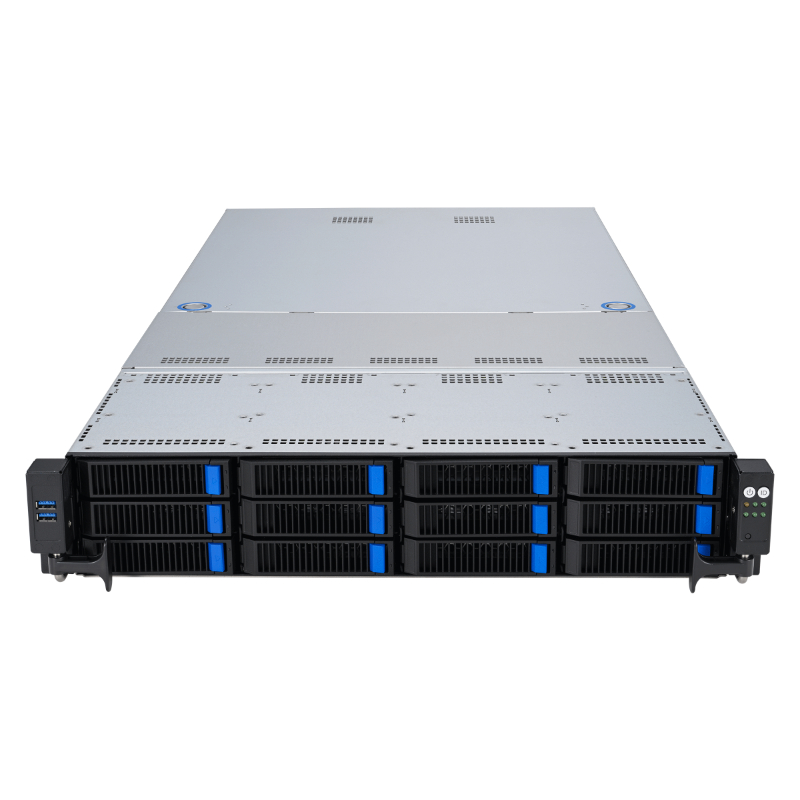

Front bays:
12 x 3.5” hot-swap drive bays
Support up to 12NVMe/SAS/SATA
Rear bays: 2 x 2.5” SATA hot-swap drive bays

*SAS support only from optional SAS HBA/RAID
card 2 x M.2 connectors

Networking

1 x Dual Port Intel I350-AM2 GbE LAN Controller
1 x Management Port

Graphic

Up to 4 single-slot or 2 double-slot GPU cards

Multi-GPU Support

Please find the latest GPU support from https://servers.asus.com/support/GPU

Front I/O Ports

2 x USB 3.2 Gen1 ports
1 x VGA port

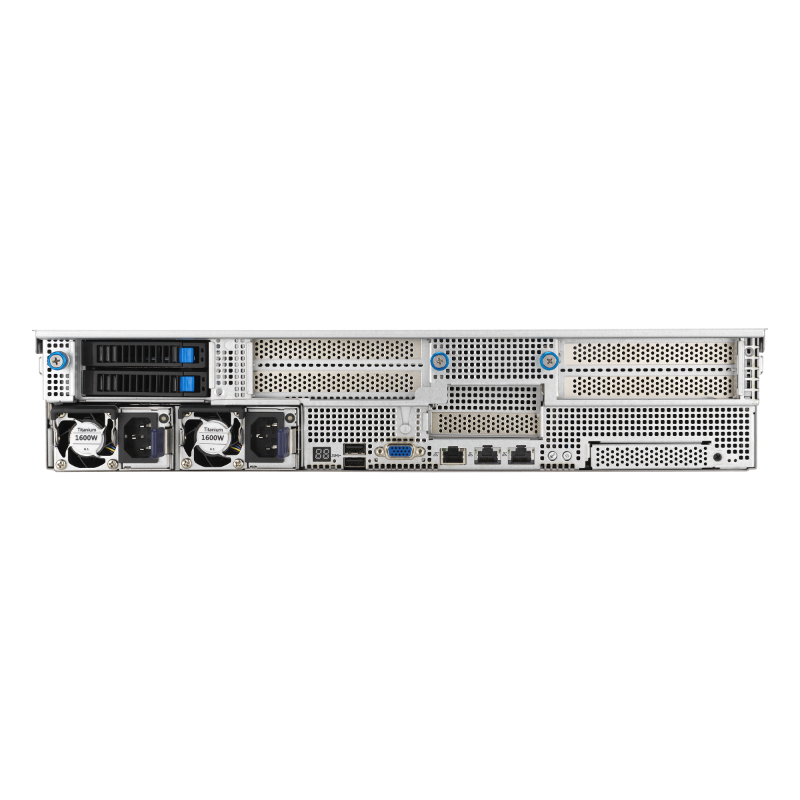

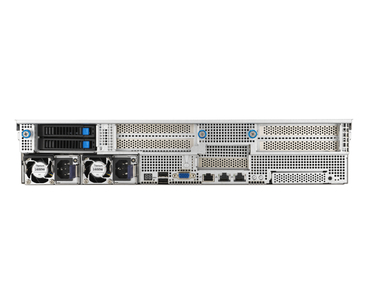

Rear I/O Ports

2 x USB 3.2 Gen1 ports
1 x VGA port
1 x Management port
2 x 1GbE LAN ports

Switch/LED

Front:
1 x Power Button/LED
1 x Reset Switch
1 x Location Button/LED
1 x HDD Access LED
1 x Message LED
LAN 1-2 LED
Rear:
1 x Port80 LED (Q-Code)
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED

OS Support

Please find the latest OS support from https://servers.asus.com/support/os

Management Solution

ASUS Control Center
ASUS ASMB11-iKVM (on-board)

Regulatory Compliance

CB, CE, RCM, FCC(Class A)

Dimensions

840mm x 449mm x 88.1mm (2U)
33.07” x 17.68” x 3.47

Form Factor

2U

Weight

(approximate)
Net Weight: 17.95 kg
Gross Weight: 25.14 kg

Environment

Operating temperature: 10°C – 35°C
Non operating temperature: -40°C – 70°C
Non operating humidity: 20% – 90% (Non condensing)

Note
Operating Temperature based on configurations
